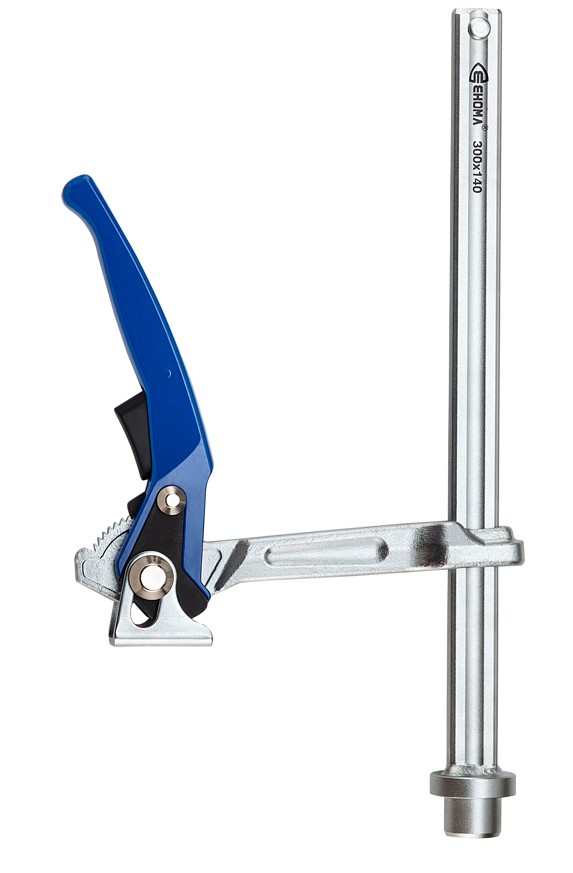

Welding Table Clamp Quick Lever Handle Item No. : WT-L Series

Favorite Inquiry PREV NEXT

,

Product Feature

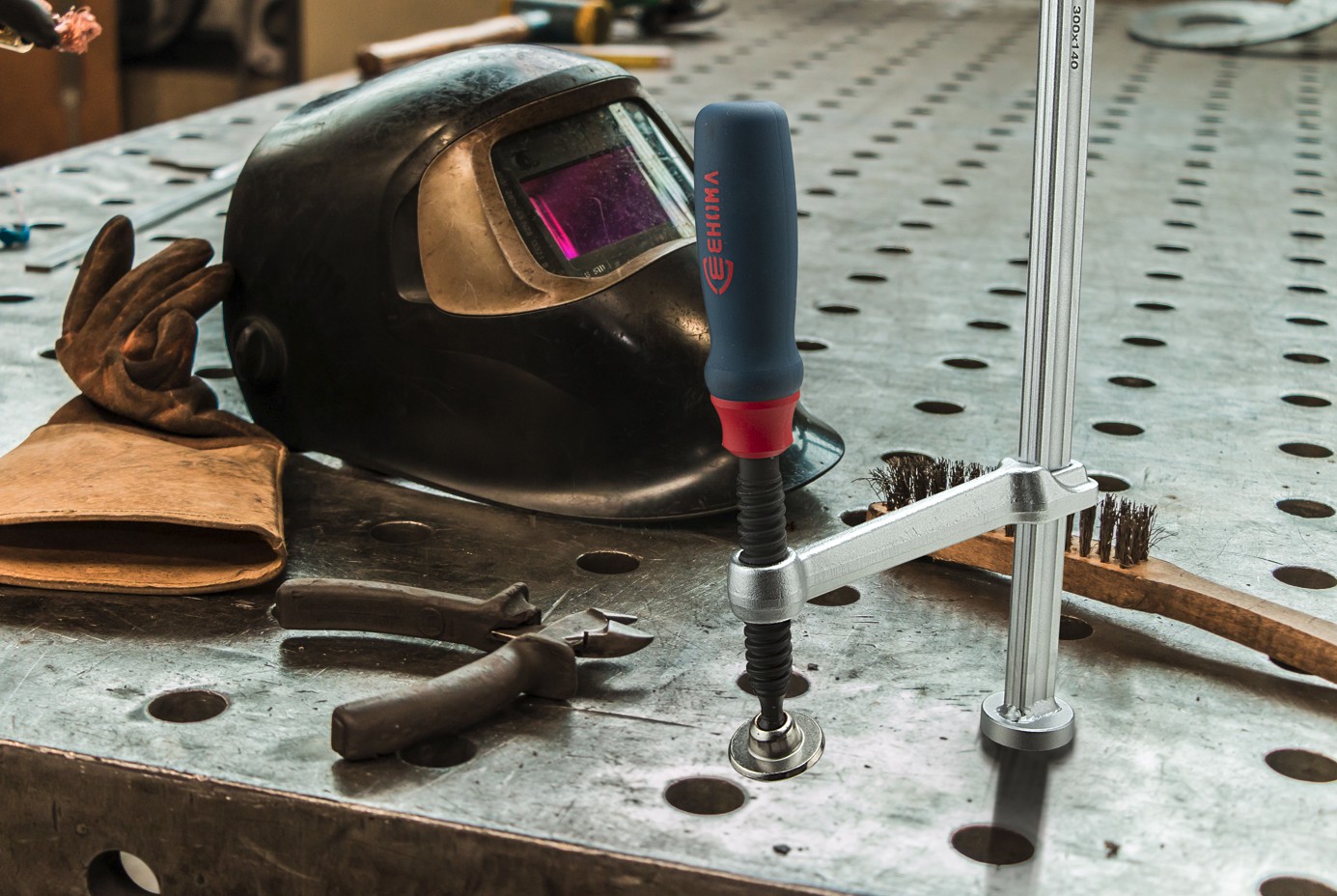

Welding Table Clamp Features Designed for Ø16 & Ø28 fixture holes found on most welding tables.

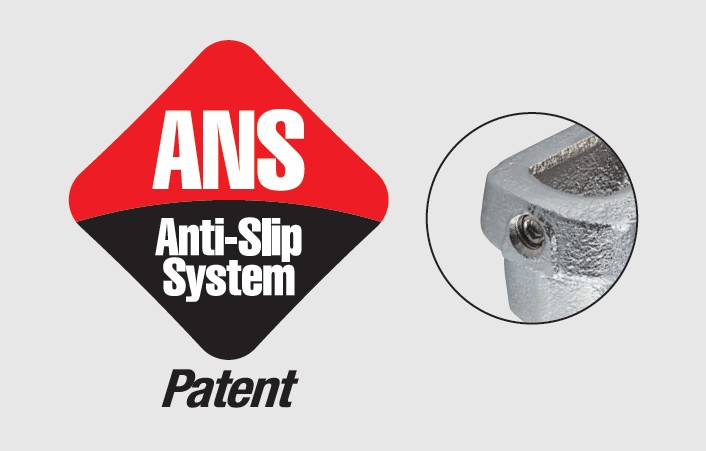

ANS System ANS system can hold the sliding arm anywhere on the rail. Prevent sliding arm from slipping away when clamping, even if shaking the clamp.
For high pressure, fast action clamping purpose. Ratchet type lever presents overloading and resists vibration.
The clamping pressure is measured at the span of 150mm. Extra PA6 pad can be ordered together with the clamp or separately as accessories.

Product Specification

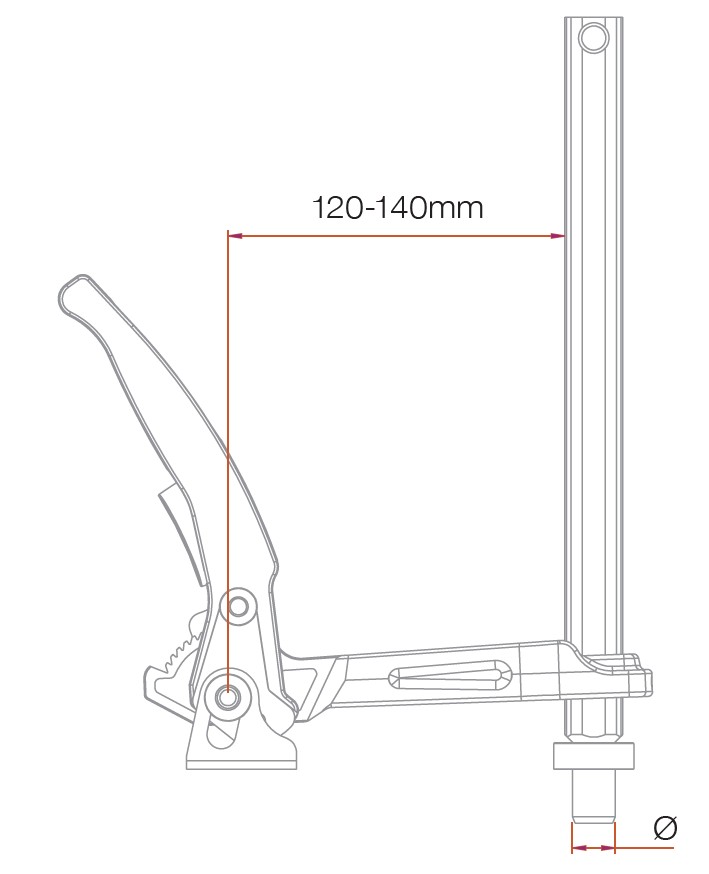

Item NO.	Ø mm	Span x Depth mm	Rail mm	Weight kg	Pressure kg	Pack pcs
WT20L12	16	200 X 120	22.0 X 10.5	1.30	400	10
WTSG30L14	28	300 X 140	25.0 X 12.0	2.10	500
