Cantilever C-Clamp Quick Adjustable
Clamps
General Purpose
Wood Working
Metal Working
C Clamp
Multi Function
Limited Space Working
Trolley & Accessories

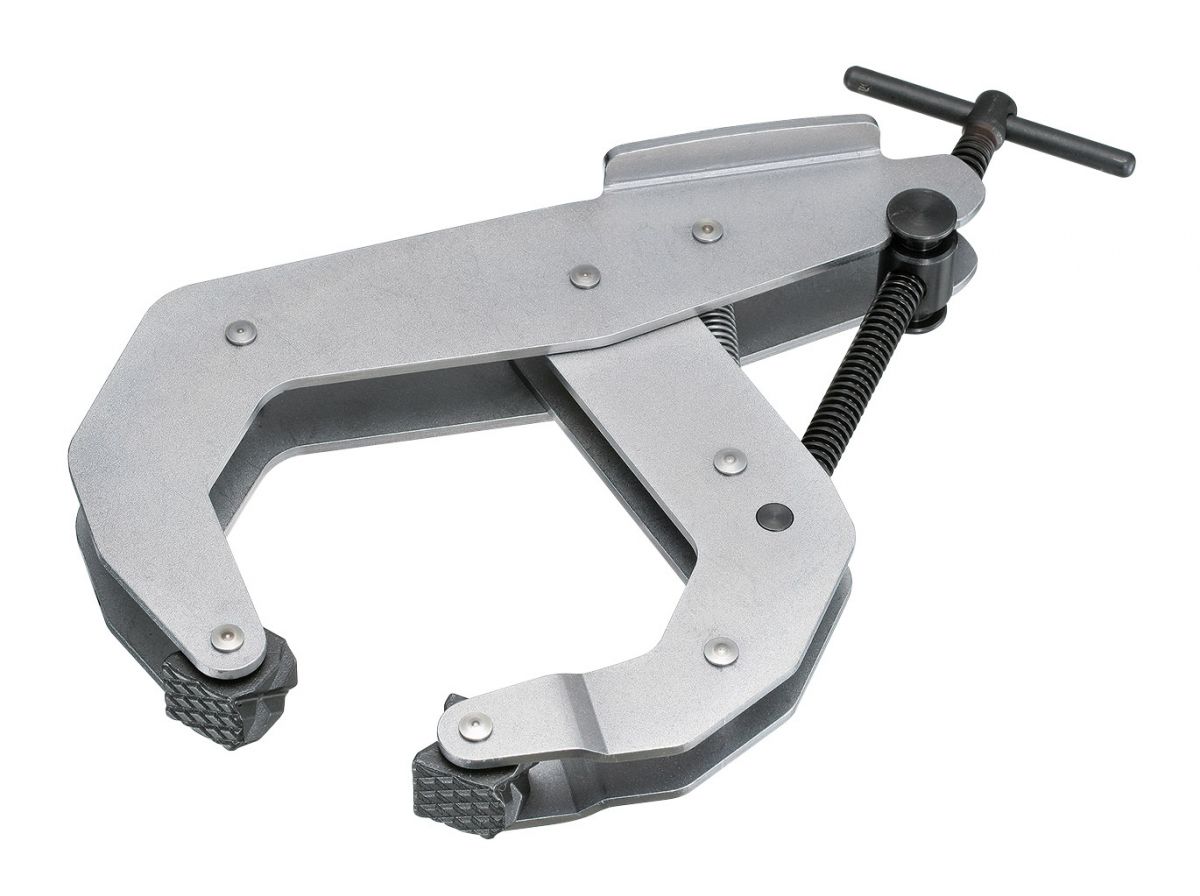

Cantilever C-Clamp Quick Adjustable
Item No. : CTC-4.5/ CTC-6 SERIES
Favorite
Inquiry
PREV
NEXT
,
Product Feature
Floating jaws always stay parallel.
C-term design makes it’s possible to clamp workpieces like H beam.
Plates made from high tensile steel: Chrome-Molybdenum alloy steel.
Cantilever clamping action:The handle is out of work area.
4 Different Gripping Surfaces:
Smooth Surface: For general purpose clamping.
Textured Surface: Increase friction between the clamping surface.
V Block: Good for clamping round workpiece.
X Block: Good for clamping round workpiece, angle bar
Smooth Surface
For general purpose
clamping.
Textured Surface
Increase friction between
the clamping surface.
V Block
Good for clamping
round workpiece.
X Block
Good for clamping round
workpiece, angle bar
Patent Function For CTC-4.5 and CTC-6
Patent for quickly adjusting the span of the clamp.
Alloyed steel : More rigid. Coarse thread For CTC-3, 4.5 & 6 : Faster re-size the span and stronger.
Plates design with labor-saving function, easier to operate " quickly adjusting span device".
Drive nut design with caps to prevent injure and to rotate the drive nut more smoothly.
Provide quickly adjusting function.
Screw
Labor-Saving
Drive Nut
Spring
CTC-1/ CTC-2/ CTC-3/ CTC-4.5/ CTC-6 Series
Product Specification
Item NO.
Span A
inch/mm
Depth B
mm
Depth C
mm
Weight
kg
Pressure
kg
Pack
pcs
CTC-4.5
4.5” / 110
58
78
0.80
680
20
CTC-6
6” /150
110
128
2.00
850
10
Safety/Quality Approvals
PAT. :
Taiwan-M413575,
USA-Application 13/167,499,
Germany-202011050016.0,
China-ZL201120109124.5
