General Purpose Clamp Plastic Folding Handle Item No. : Standard Series

Description

Parts

Extra P.P. pads can be ordered together with the clamp or separately as accessories (Page 57).

Favorite Inquiry NEXT

,

Product Description

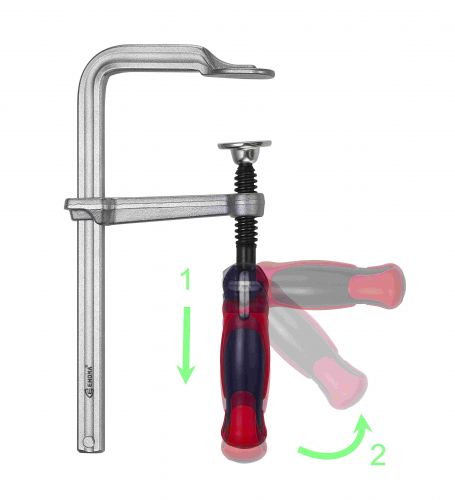

Labor-Saving： With pivot structure, more easy to apply clamping force Space-Saving : After clamping, the bending handle save much more space than traditional straight handle.

Product Specification

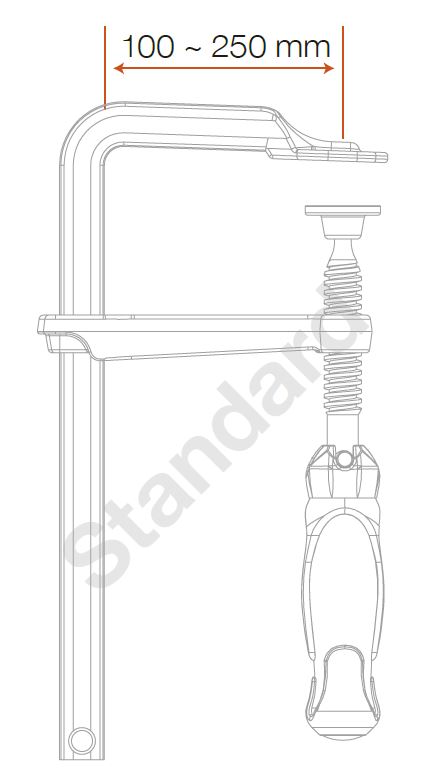

Item NO.	Span x Depth	Rail	Weight	Pressure	Pack
	mm	mm	kg	kg	pcs
G20PF	200 X 100	19.5 X 9.5	0.95	450	10
G30PF10	300 X 100		1.07
G50PF10	500 X 100		1.33
G25PF	250 X 120	22.0 X 10.5	1.30	550	10
G30PF12	300 X 120		1.38
G40PF12	400 X 120		1.54
G50PF12	500 X 120		1.70
G60PF12	600 X 120		1.86
G80PF12	800 X 120		2.20		6
G100PF12	1000 X120		2.64
G30PF	300 X 140	25.0 X 12.0	1.84	670	10
SG30PF	300 X 120	25.0 X 12.0	1.80	750	10
SG40PF	400 X 120		1.99
SG50PF	500 X 120		2.20
SG60PF	600 X 120		2.41
SG80PF	800 X 120	27.0 X 13.0	3.29	1000	6
SG100PF	1000 X 120		3.77
SG125PF	1250 X 120		4.37		4
SG150PF	1500 X 120		5.00
G40PF	400 X 175	27.0 X 13.0	2.50	700	10
G60PF	600 X 175		2.99		6
G80PF	800 X 175		3.48
G100PF	1000 X 175		3.96
PFD30T20	300 X 200	30.0 X 15.0	3.06	800	6
PFD40T20	400 X 200		3.38
PFD50T20	500 X 200		3.70
PFD60T20	600 X 200		4.02
PFD80T20	800 X 200		4.65		4
PFD100T20	1000 X 200		5.28
PFD40T25	400 X 250	30.0 X 15.0	3.61	700	6
PFD50T25	500 X 250		3.92
PFD60T25	600 X 250		4.24
PFD80T25	800 X 250		4.87		4
PFD100T25	1000 X 250		5.51
