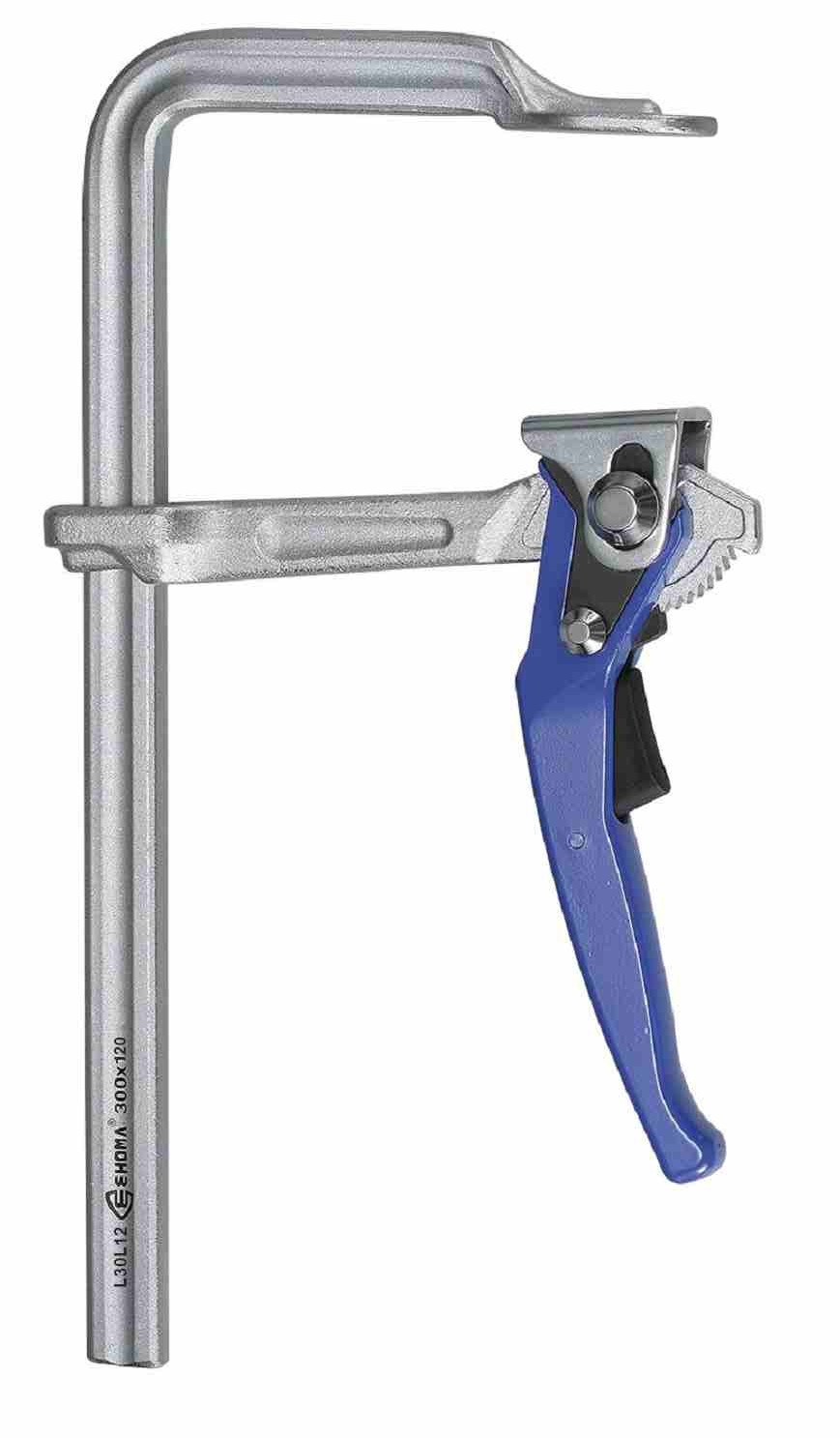

Superior Lightweight Clamp Quick Lever Item No. : Standard Series

Favorite Inquiry PREV NEXT

,

Product Feature

Keep the same clamping pressure but the weight is lighter. Compared to the G30C clamp made of rail 25mm, the Special Alloy steel L30PN14 provides the same clamping force while reducing the product's weight by 30%.
For high pressure, fast action clamping purpose. Ratchet type lever presents overloading and resists vibration. The clamping pressure is measured at the span of 150mm.

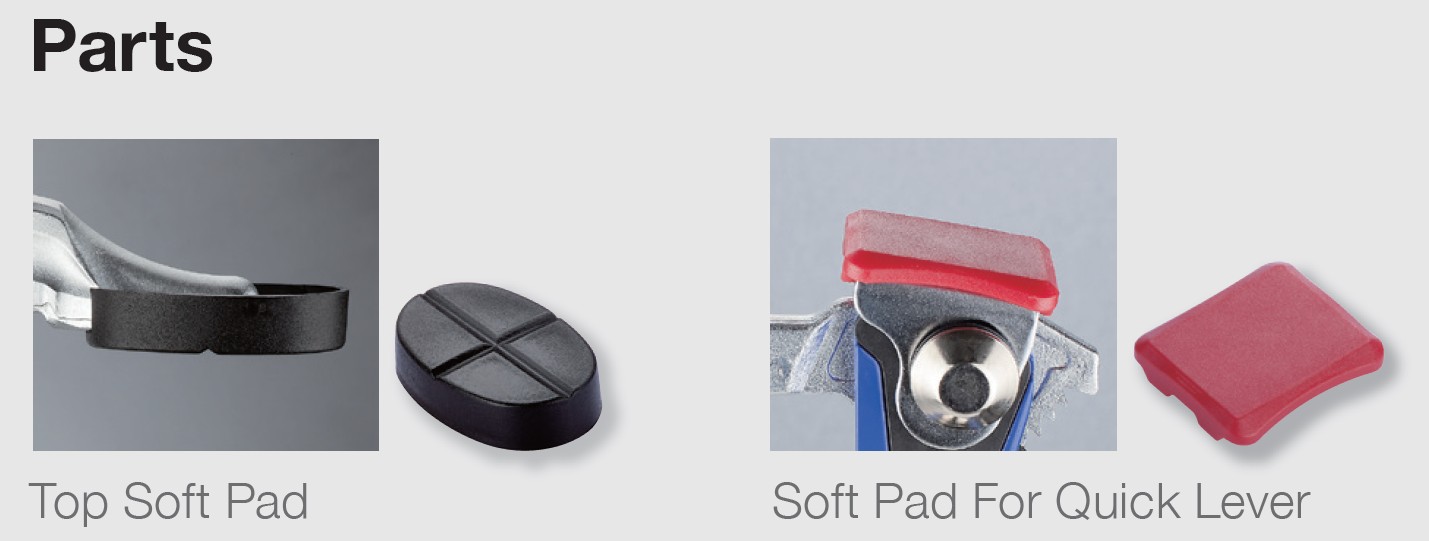

Extra PE & PA6 pads can be ordered together with the clamp or separately as accessories.

Product Specification

Item NO.	Span x Depth mm	Rail mm	Weight kg	Pressure kg	Pack pcs
L25L	250 X 120	22.0 X 10.5	1.50	750	10
L30L12	300 X 120		1.58
L40L12	400 X 120		1.75
L50L12	500 X 120		1.91
L60L12	600 X 120		2.07
L80L12	800 X 120		2.39		6
L100L12	1000 X120		2.72
