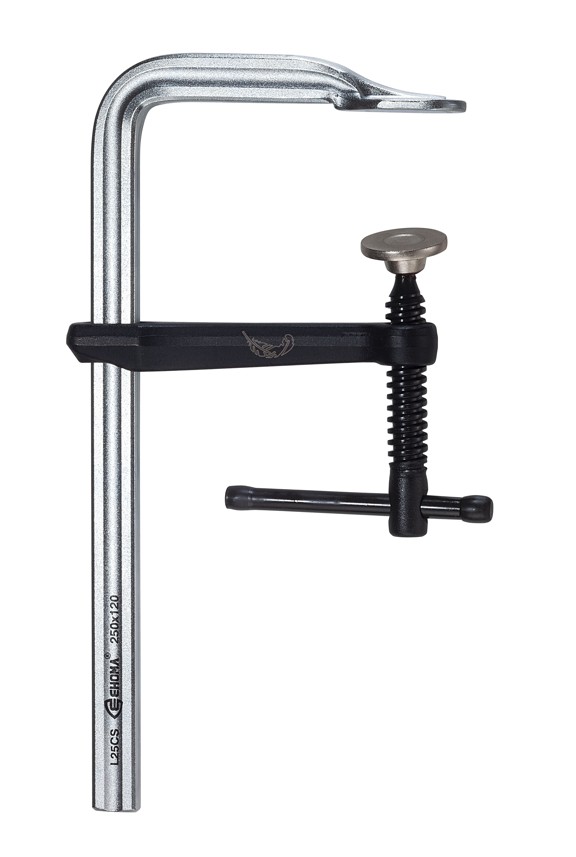

Superior Lightweight Clamp T-Handle Item No. : Standard Series

Favorite Inquiry PREV NEXT

,

Product Feature

Keep the same clamping pressure but the weight is lighter. Compared to the G30C clamp made of rail 25mm, the Special Alloy steel L30PN14 provides the same clamping force while reducing the product's weight by 30%.
The round ends of T-Handle are easy and good for reinforced clamping by transfer tools. The clamping pressure of T-Handle Clamp is based on the span 150mm. Extra PE pads can be ordered together with the clamp or separately as accessories.

Product Specification



Item NO.	Span x Depth mm	Rail mm	Weight kg	Pressure kg	Pack pcs
L25CS	250 X 120	22.0 X 10.5	1.47	750	10
L30CS12	300 X 120		1.55
L40CS12	400 X 120		1.72
L50CS12	500 X 120		1.88
L60CS12	600 X 120		2.04
L80CS12	800 X 120		2.36		6
L100CS12	1000 X120		2.69
L25CS14	250 X 140	22.0 X 10.5	1.55	670	10
L30CS14	300 X 140		1.63
L40CS14	400 X 140		1.79
L50CS14	500 X 140		1.95
L60CS14	600 X 140		2.12
L80CS14	800 X 140		2.44		6
L100CS14	1000 X 140		2.76
