General Purpose Clamp T-Handle Item No. : Deep Series

Favorite Inquiry PREV NEXT

,

Product Feature

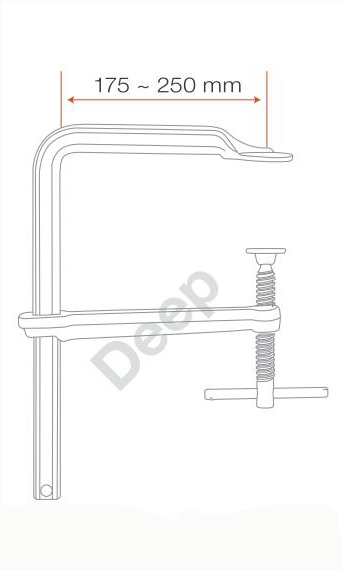

The round ends of T-Handle are easy and good for reinforced clamping by transfer tools. The clamping pressure of T-Handle Clamp is based on the span 150mm. T-Handle Clamp Rail: 27x13 & 30 xl 5, Span 2000, 2500, 3000, 3500mm, etc. special sizes could be ordered. Extra P.P. pads can be ordered together with the clamp or separately as accessories.

Product Specification

Item NO.	Span x Depth mm	Rail mm	Weight kg	Pressure kg	Pack pcs
G40CS	400 X 175	27.0 X 13.0	2.57	700	10
G60CS	600 X 175		3.06		6
G80CS	800 X 175		3.55
G100CS	1000 X 175		4.03
SD30T20	300 X 200	30.0 X 15.0	2.97	800	6
SD40T20	400 X 200		3.28
SD50T20	500 X 200		3.60
SD60T20	600 X 200		3.92
SD80T20	800 X 200		4.56		4
SD100T20	1000 X 200		5.20
SD40T25	400 X 250	30.0 X 15.0	3.55	700	6
SD50T25	500 X 250		3.87
SD60T25	600 X 250		4.19
SD80T25	800 X 250		4.82		4
SD100T25	1000 X 250		5.46
