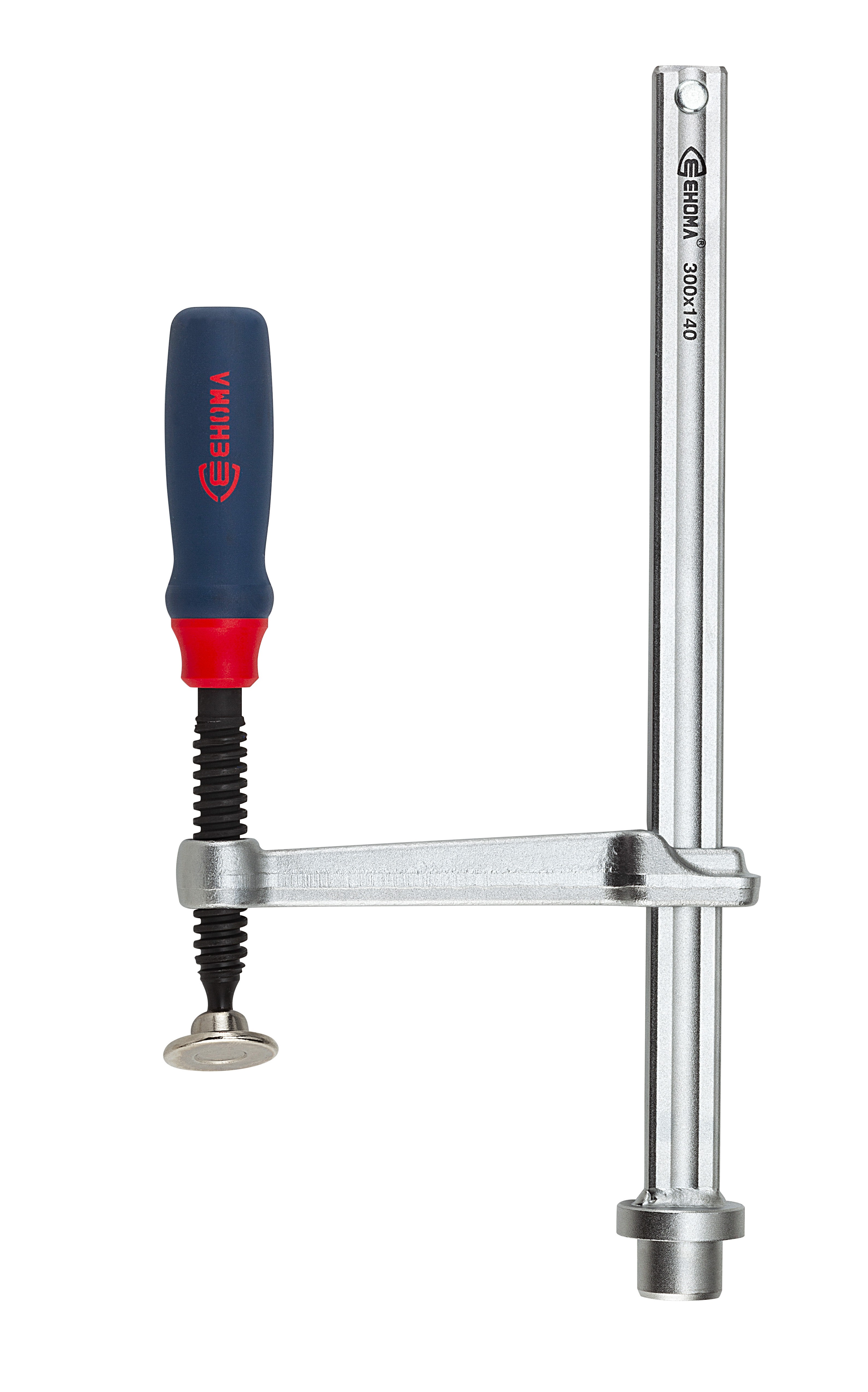

Welding Table Clamp Component Handle Item No. : WT-PN Series

Favorite Inquiry NEXT

,

Product Feature

Welding Table Clamp Features Designed for Ø16 & Ø28 fixture holes found on most welding tables.
ANS System ANS system can hold the sliding arm anywhere on the rail. Prevent sliding arm from slipping away when clamping, even if shaking the clamp.

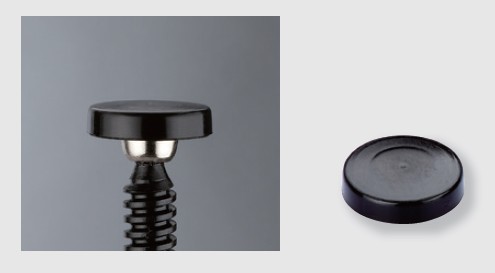

The component plastic handle is made of P.P. and T.P.R. material. The PN handle can be with logo or without logo. It could be ordered by OEM branding request. The clamping pressure is measured at the span of 150mm. Extra PE pad can be ordered together with the clamp or separately as accessories

Product Specification

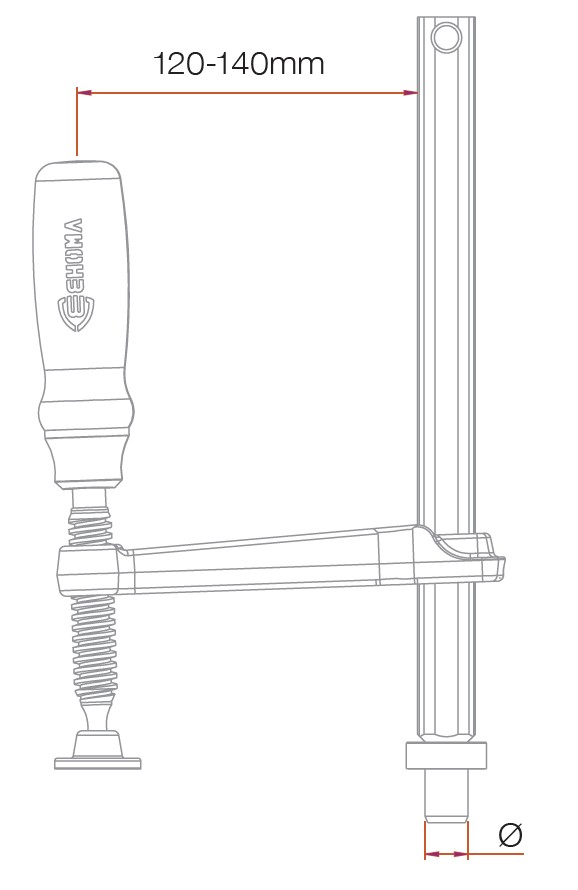

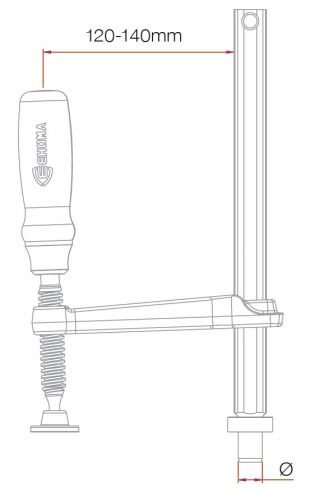

Item NO.	Ø mm	Span x Depth mm	Rail mm	Weight kg	Pressure kg	Pack pcs
WT20PN12	16	200 X 120	22.0 X 10.5	1.20	550	10
WTSG30PN14	28	300 X 140	25.0 X 12.0	1.70	670
